Gustavolf Germany 12mm PAWO F7 Wire Rope for Traction Elevators

In traction elevator systems, selecting the right wire rope is a critical decision that directly affects safety, ride smoothness, maintenance costs, and the overall service life of the system.

Among the available options, the Gustavolf Germany 12mm PAWO F7 wire rope, with its engineered 8x19W+IWRC construction, is one of the most reliable and best-selling choices for residential, office, and even semi-industrial projects.

With decades of experience in manufacturing specialized steel wire ropes, the Gustav Wolf brand delivers a benchmark of quality, consistency, and product traceability that provides confidence for both employers and installers.

Gustavolf Germany 12mm PAWO F7 Wire Rope: A Balance of Strength, Flexibility, and Service Life

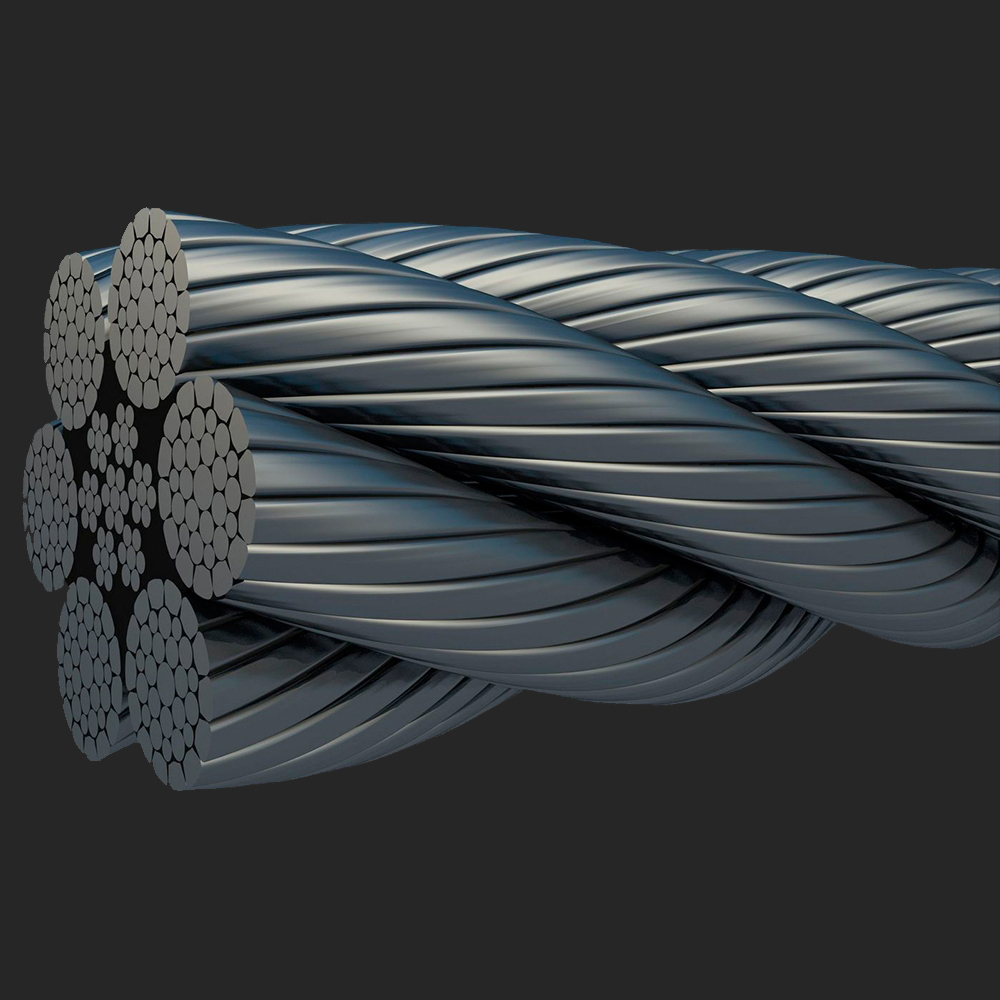

The 8-strand, 19-wire Warrington construction (8x19W) creates an intelligent balance between flexibility under repeated bending over sheaves and high resistance to abrasion.

The presence of an independent steel core (IWRC) further enhances cross-sectional stability, improves load-bearing capacity, and reduces longitudinal elongation during operation.

The result is a wire rope that experiences less fatigue in high-duty cycles and maintains consistent ride quality over the long term.

Where Should Gustavolf Germany 12mm PAWO F7 Be Used?

The Gustavolf Germany 12mm PAWO F7 wire rope is suitable for traction elevators with medium to high traffic capacity, standard to medium travel heights, and requirements for smooth and quiet operation.

With a minimum breaking force of 90.7 kN and a unit weight of 0.576 kg per meter, its design meets a wide range of traction calculations and roping ratios in conventional elevator systems.

At the same time, uniform diameter and high-quality surface finish provide controlled friction with sheave grooves, reducing slippage while preventing abnormal wear.

Key Benefits and Operational Value of Gustavolf Germany 12mm PAWO F7

• High safety: Nominal breaking force aligned with standard elevator design safety factors.
• Smooth travel: Warrington construction and uniform diameter ensure even stress distribution on the sheave grooves.
• Fatigue durability: The IWRC steel core reinforces the structural stability of the rope.
• Cost-effective maintenance: Reduced need for tension adjustment and alignment, along with lower wear on sheaves and guide shoes.
• Traceability and authenticity: Manufactured under strict European standards with full quality documentation.

Important Installation and Maintenance Tips to Maximize Service Life

To achieve the best results, a few simple principles should be followed: proper rope seating on sheaves, applying uniform initial tension across all ropes, maintaining the sheave diameter to rope diameter ratio (D/d) in accordance with manufacturer guidelines, periodic lubrication with compatible grease, and visual inspection for fatigue signs such as broken wires or localized deformation at contact points.

These routine practices not only enhance safety but also help prevent unexpected maintenance costs.

Applications in Residential, Office, and Commercial Projects

Thanks to its optimal balance between flexibility and strength, the Gustavolf Germany 12mm PAWO F7 wire rope is an ideal choice for residential towers, high-traffic office buildings, hotels, and shopping centers.
When used alongside standard certified sheaves and correct installation conditions, this product delivers excellent stopping accuracy and ride comfort, factors that directly influence user satisfaction.

How to Select the Correct Number of Ropes and Roping Arrangement?

Matching the number of ropes, roping configuration (2:1, 4:1, etc.), center distances, and equivalent load to the specifications of this wire rope must be carried out based on engineering calculations and EN 81 standards.

Correct selection reduces the load on each rope, prevents uneven tension, and minimizes localized wear.

Technical Specifications Table of Gustavolf Germany 12mm PAWO F7 Wire Rope

Conclusion: A Professional Choice for Reliable Elevators

If you are seeking a reliable wire rope with German manufacturing quality, excellent resistance to bending fatigue, and stable performance under high-duty cycles, the Gustavolf Germany 12mm PAWO F7 wire rope is a proven solution.

By combining Warrington construction, an IWRC steel core, and precise quality control, this product helps reduce maintenance costs while enhancing safety levels and ride comfort.
