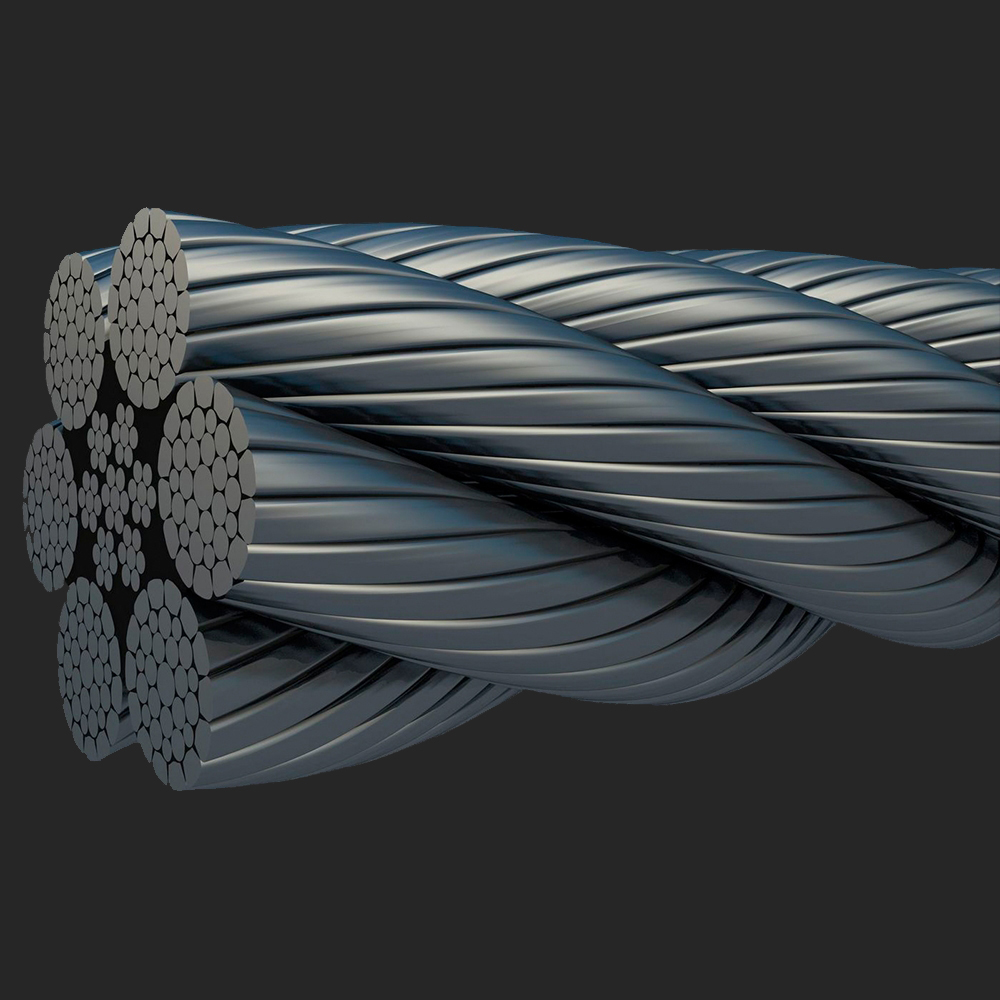

Gustav Wolf Germany 13 Core Hemp F819 S-FC Elevator Wire Rope
-
13 mm Fiber Core Wire Rope, Model F819 S-FC, Made in Germany
-
Durable 8x19S+FC construction with 152 individual wires
-
Suitable for medium-rise elevators and 1:1 systems
-
High resistance to wear with low component fatigue
-
Breaking force of 80.7 kN, suitable for balanced loads
-
Lightweight design with low consumption and reliable performance in low-duty cycles
Gustav Wolf Germany 13 mm Fiber Core Wire Rope F819 S-FC
The Gustav Wolf Germany 13 mm fiber core wire rope F819 S-FC is one of the oldest and best-selling products of the German company Gustav Wolf. It is manufactured with the standard 8x19S+FC construction and a fiber core. Due to its high flexibility, lighter weight, and suitable resistance in low bending cycles, this wire rope is an ideal choice for low-speed, medium-rise elevators.
Technical Specifications of Gustav Wolf Germany 13 mm Fiber Core Wire Rope F819 S-FC
| Feature | Specification |
|---|---|
| Model | F819 S-FC |
| Country of Origin | Germany |
| Nominal Diameter | 13 mm |
| Construction | 8x19S + FC |
| Core Type | Fiber Core (FC) |
| Weight per Meter | 0.579 kg |
| Minimum Breaking Load (MBL) | 80.7 kilonewtons (kN) |
Technical and Practical Advantages of Gustav Wolf Germany 13 mm Fiber Core Wire Rope F819 S-FC
- Seale Construction with High Abrasion Resistance
The engineered 8x19S construction with 152 individual wires combined with a fiber core creates an excellent balance between flexibility and abrasion resistance.
- Suitable for Elevators with 1:1 Roping System
The Gustav Wolf Germany 13 mm fiber core wire rope F819 S-FC is an excellent choice for elevators using a 1:1 roping system. In this system, more direct tensile and compressive forces are applied to the rope, which the fiber core can better absorb, thereby increasing the service life of the rope.
- Suitable for Low Bending Cycles
If your project is located in a building with medium height and low speed, the Gustav Wolf Germany 13 mm fiber core wire rope F819 S-FC can ensure safe, smooth, and cost-effective performance.
- Optimized and Economical Consumption
Its lower weight compared to steel-core alternatives results in easier handling and installation, as well as reduced wear on the traction sheave and other components.
Applications
-
Low-speed residential elevators
-
Small commercial elevators
-
Mid-rise buildings
-
New construction projects with economical design
-
Replacement in projects with 1:1 roping systems
